Configuring Port Expander MCP23S17

Requirement: Special hardware is connected via SPI.

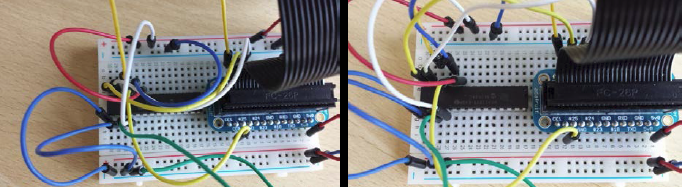

The MCP23S17.project project contains an application where a port expander chip (MCP23S17) has been connected via SPI.

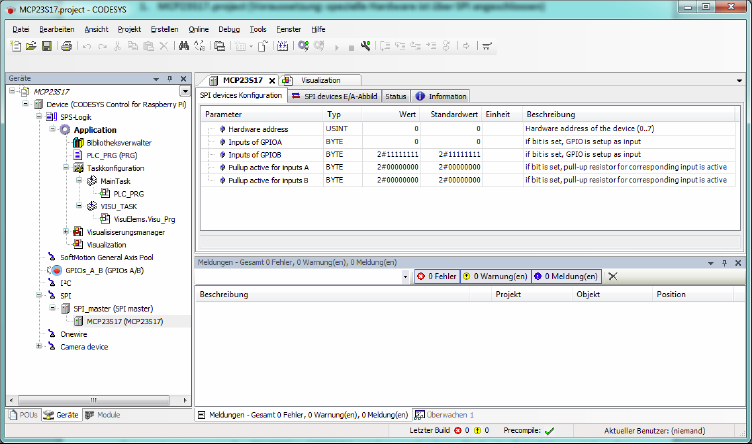

In the device editor, you can configure which of the GPIO pins are used as inputs or outputs. You can also activate a pull-up resistor for the inputs. Depending on the assignment of the address IO pins, the hardware address has to be configured accordingly.
